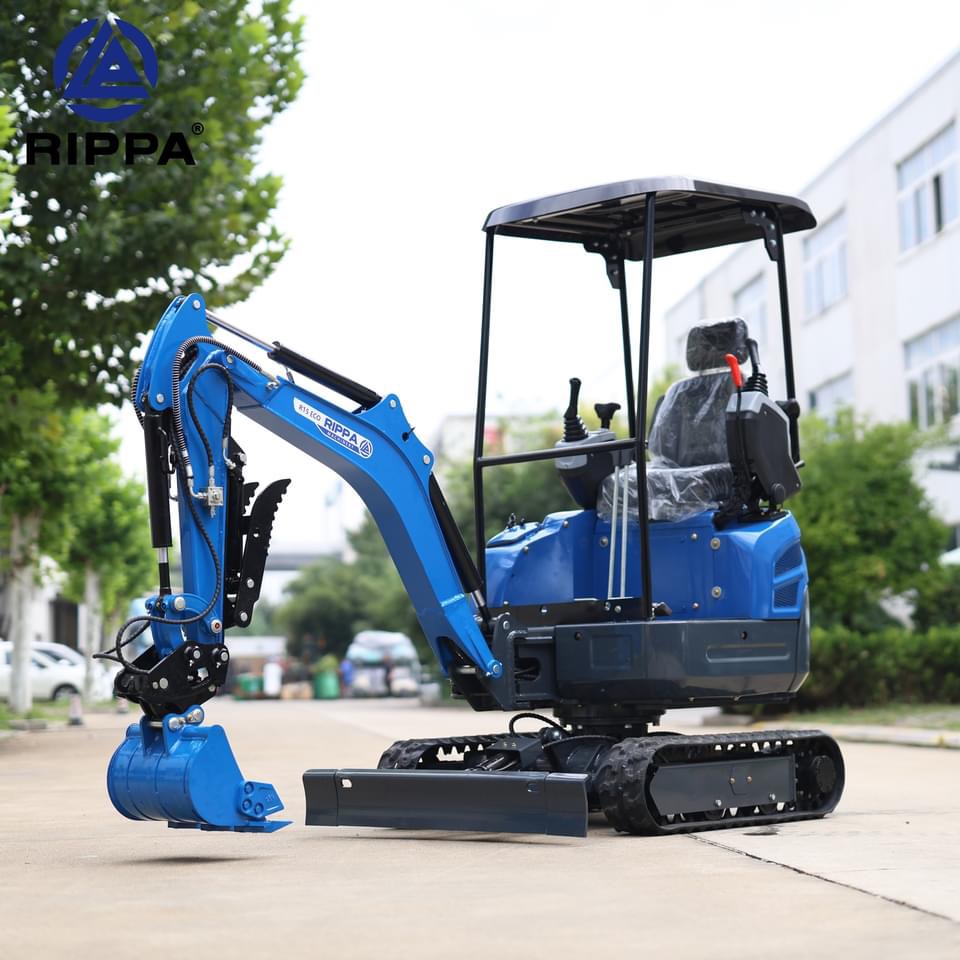

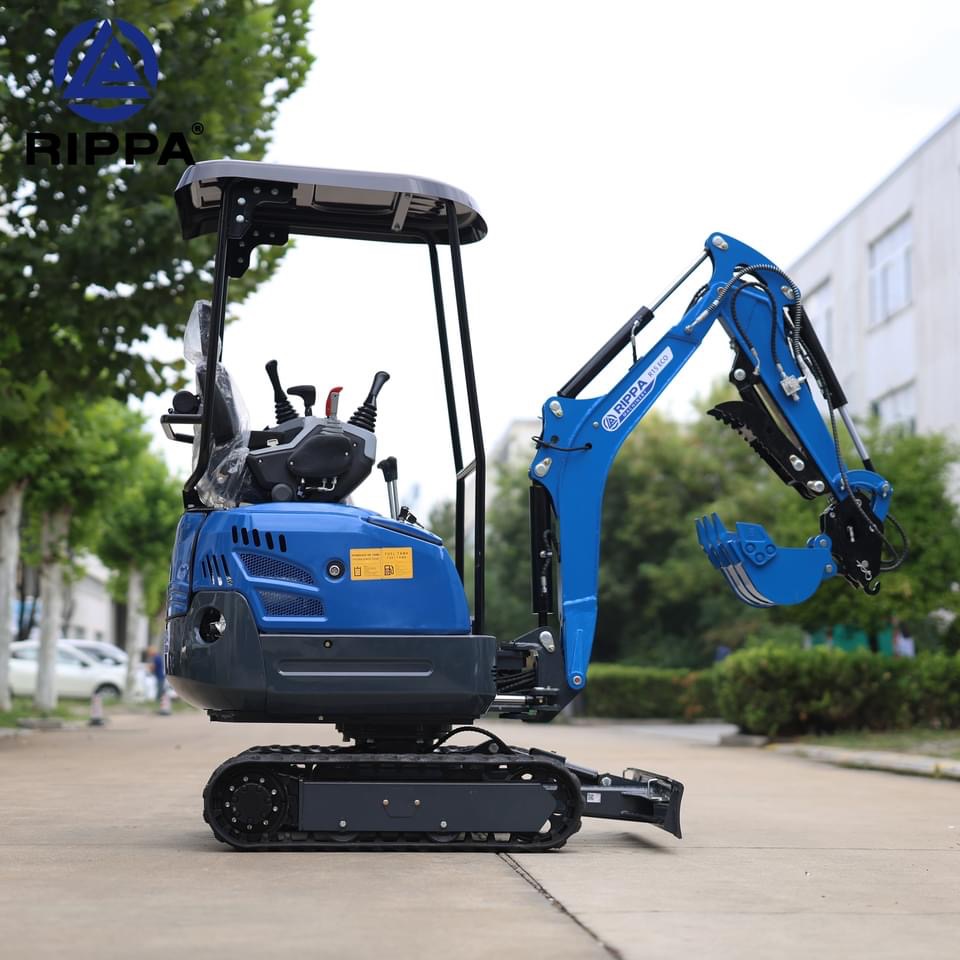

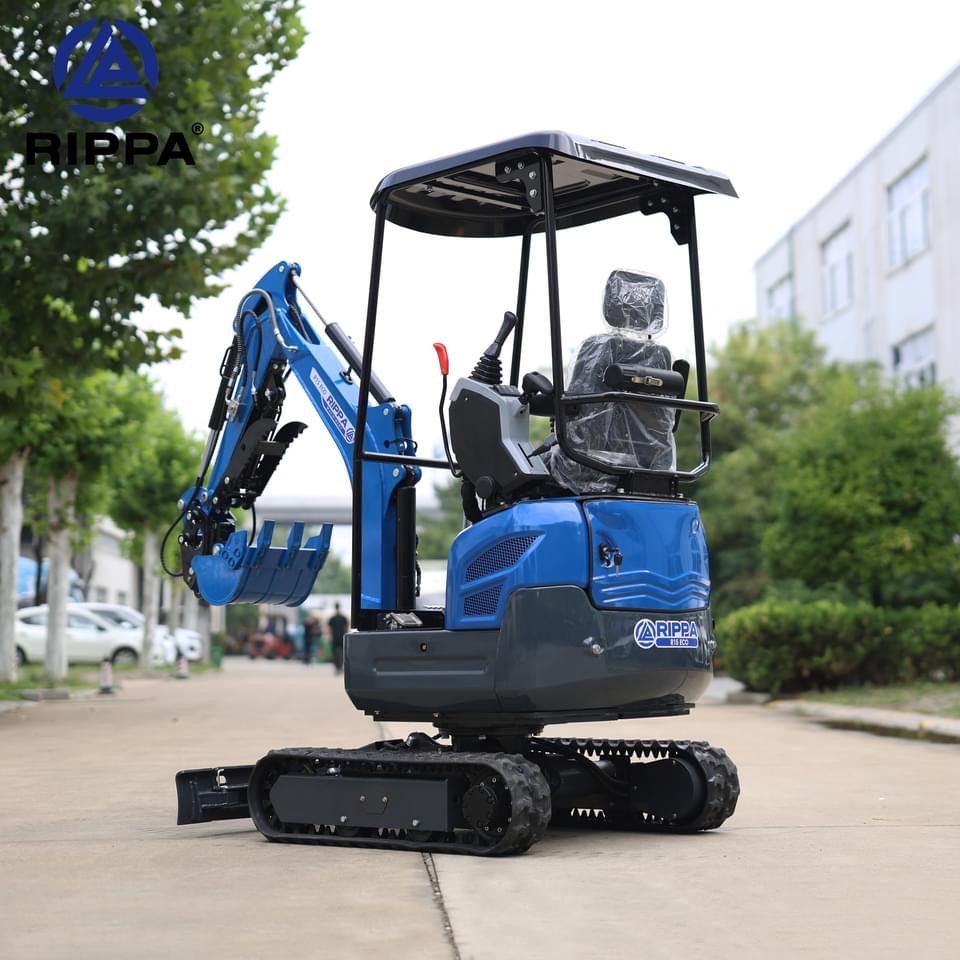

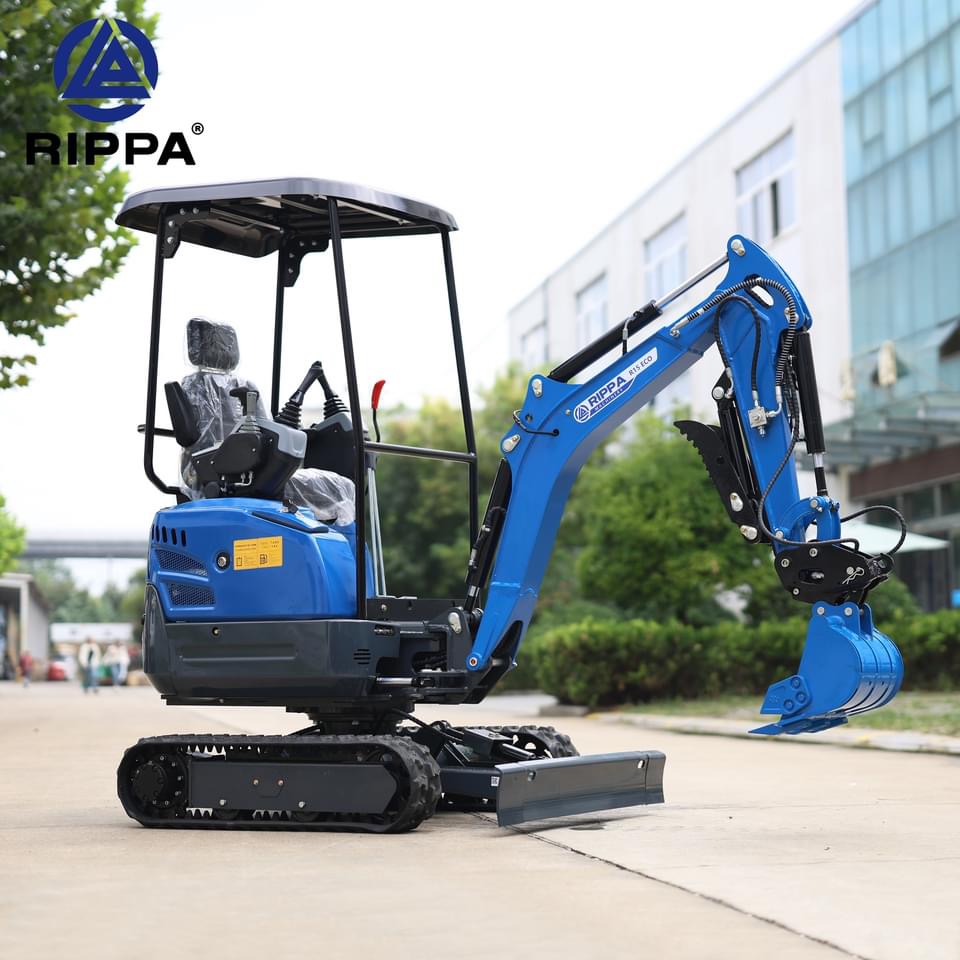

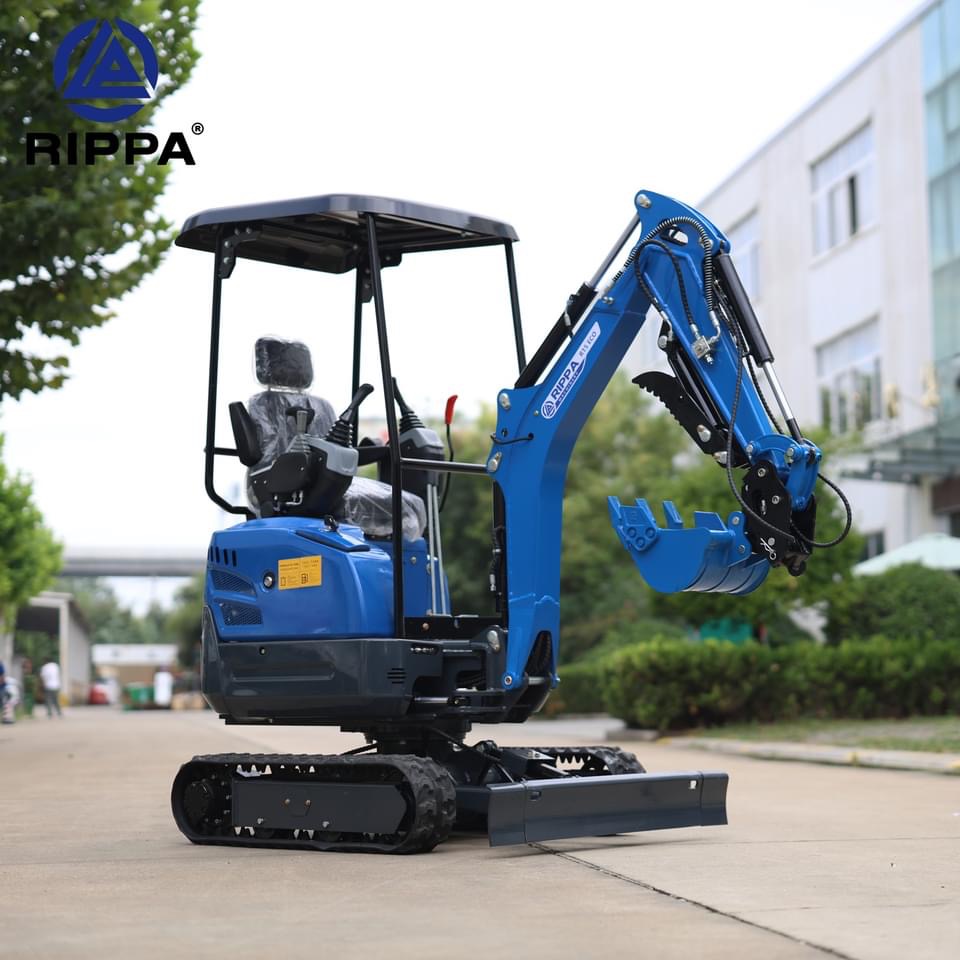

RIPPA R15 ECO

https://netchaos.odoo.com/web/image/product.template/191/image_1920?unique=35cc3d4
(0 review)

1.5 tons mini-excavator
Kubota D722 Diesel Engine
Extendable carriage included

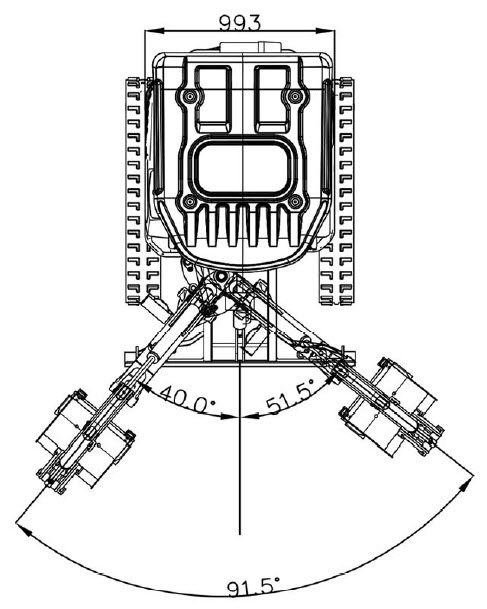

Swing Boom included
2 Speed High and Low Protected Travel motor

0.00 0.0 USD 0.00 + applicable sales taxes

0.00 $ + applicable sales taxes

Contact us for availability and pricing

  • Cab
  • Engine type
  • Engine Manufacturer
  • Engine Model
  • Maximum torque - (Nm (lb-ft) / rpm)
  • Maximum Rated output - (kW (HP) / rpm)
  • Operating weight (kg)
  • Final Drive type
  • Travel speed in high mode (km/h)
  • Travel speed in Low mode (km/h)
  • Max Bucket digging force kN (kgf/lbf)
  • Max Arm digging force kN (kgf/lbf)
  • Climbing ability (%)
  • Overall height (mm/in.)
  • Transportation width (mm/in.)
  • Transportation length (mm/in.)
  • Track width when retracted (mm/in.)
  • Track width when extended (mm/in.)
  • Track undercarriage length (mm/in.)
  • Track center sprocket idler distance (mm/in.)
  • Track undercarriage height (mm/in.)
  • Locking hydraulic functions
  • Auxiliary Hydraulics on arm
  • Auxiliary output - Quick connect
  • Maximum digging depth (mm/in)
  • Maximum digging height (mm/in)
  • Maximum unloading height (mm/in)
  • Maximum reach at ground Level (mm/in)
  • Thumb

This combination does not exist.

#r15-3-pro #rippaexcavator #rippa

Terms and Conditions
Delay for delivery
-1 to 2 business day if you pickup at our location
-7 to 10 business days  if you request shipping
-if you do a pre-order\reservation: up to 3 months might be required, while our stock are being replenished.

Top Speed

Two Speed Orbital final drive

The protected orbital travel motor is a cutting-edge component designed for precision and durability in demanding environments. Engineered to withstand harsh conditions, this motor features robust protective housing that safeguards its internal mechanisms from dust, moisture, and impact. Coupled with high torque power, it delivers exceptional performance, enabling smooth and efficient movement in applications requiring significant force. This combination of protection and power makes the protected orbital travel motor an ideal choice for industrial machinery, robotics, and other advanced systems where reliability and strength are paramount.

Impressive polyvalence

The RIPPA R15 is an ideal tool for small land, farms and landscaping businesses, featuring a versatile two-speed system that allows for tailored operation based on task requirements. Its intuitive pilot controls ensure ease of use for operators of all skill levels, while its compact size enables maneuverability in tight spaces and access to areas larger machinery cannot reach. This combination of features enhances productivity, allowing small businesses to complete tasks efficiently and take on more projects, ultimately leading to greater success.


KUBOTA Engine

Kubota diesel engine brings powerful performance and excellent working ability with its excellent design. It also has the advantages of low fuel consumption, low vibration and low noise. Kubota  provide a 2  years \ 2000 Hours warranty.

Specifications

Engine
Engine type Water-Cooled Diesel
Engine Manufacturer Kubota
Engine Model D722
Maximum torque - (Nm (lb-ft) / rpm) 45.8 (33.8) / 2600
Maximum Rated output - (kW (HP) / rpm) 14.9 (20.0) / 3600
Configuration
Cab with canopy (ROPS)
Main Caracteristics
Operating weight (kg) 1500
Final Drive type 2-Speed Orbital Hydraulic Motor
Travel speed in high mode (km/h) n/a
Travel speed in Low mode (km/h) n/a
Locking hydraulic functions Yes
Auxiliary Hydraulics on arm Standard
Auxiliary output - Quick connect Standard
Thumb Availaible in option

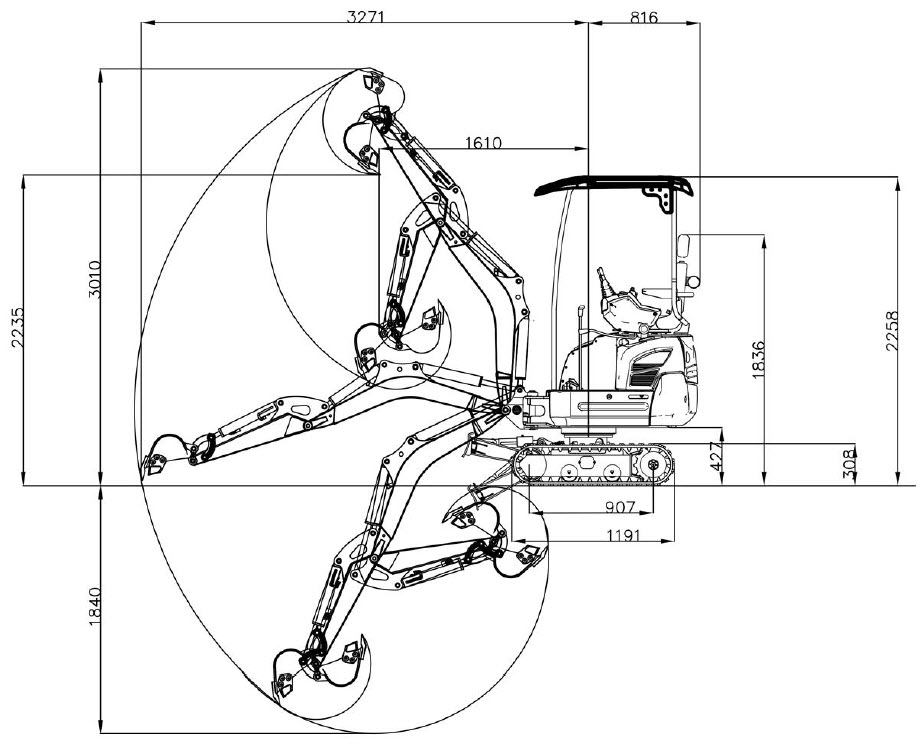

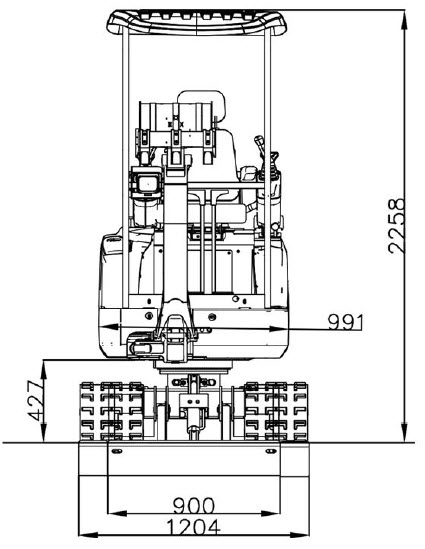

Dimensions
Overall height (mm/in.) 2322/91.4
Transportation width (mm/in.) 1092/43
Transportation length (mm/in.) 2527/99.5
Track width when retracted (mm/in.) 989/38.9
Track width when extended (mm/in.) 1190/46.9
Track undercarriage length (mm/in.) 1596/62.8
Track center sprocket idler distance (mm/in.) 1182/46.5
Track undercarriage height (mm/in.) 407/16
Performance
Max Bucket digging force kN (kgf/lbf) 12.8 (1224/2698
Max Arm digging force kN (kgf/lbf) 12.1 (1240/2734)
Climbing ability (%) 30
Maximum digging depth (mm/in) 2420/95.3
Maximum digging height (mm/in) 3396/133.9
Maximum unloading height (mm/in) 2182/85.8
Maximum reach at ground Level (mm/in) 3970/ 156.3
