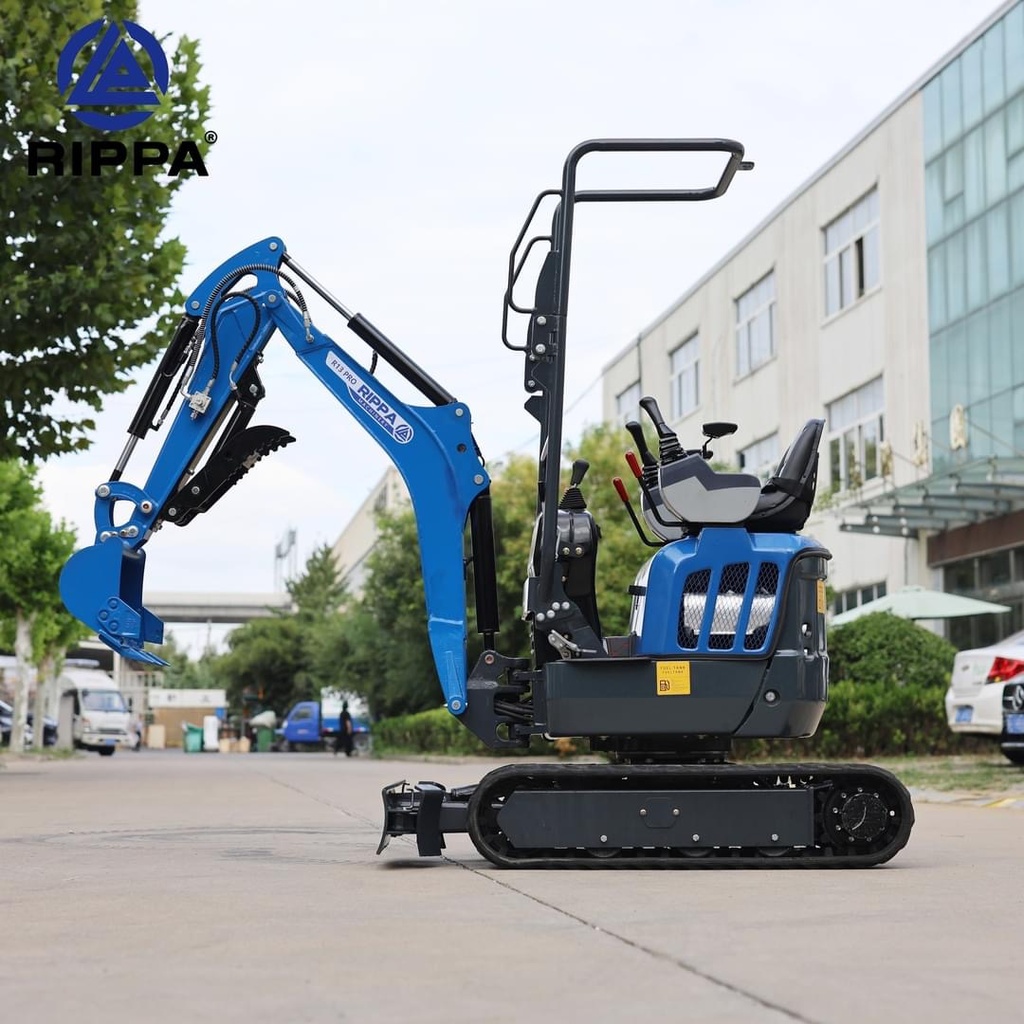

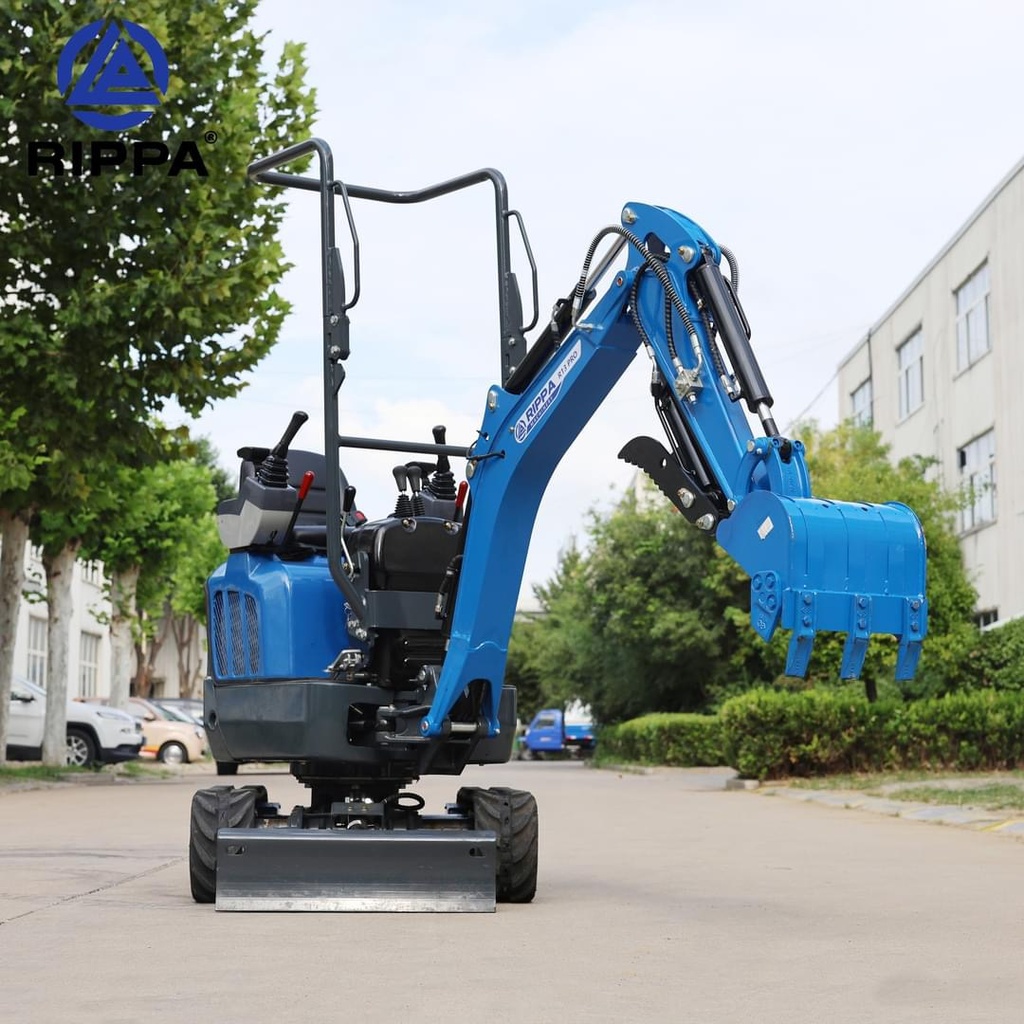

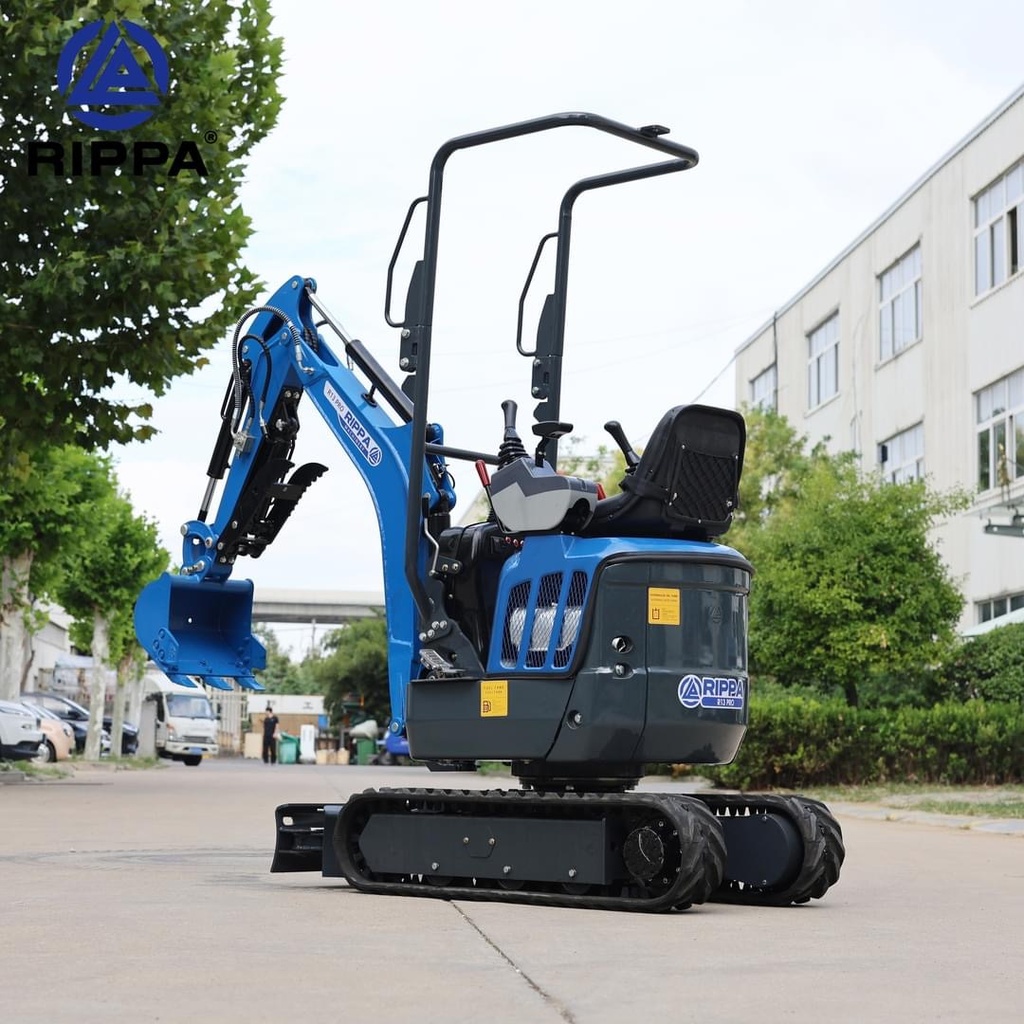

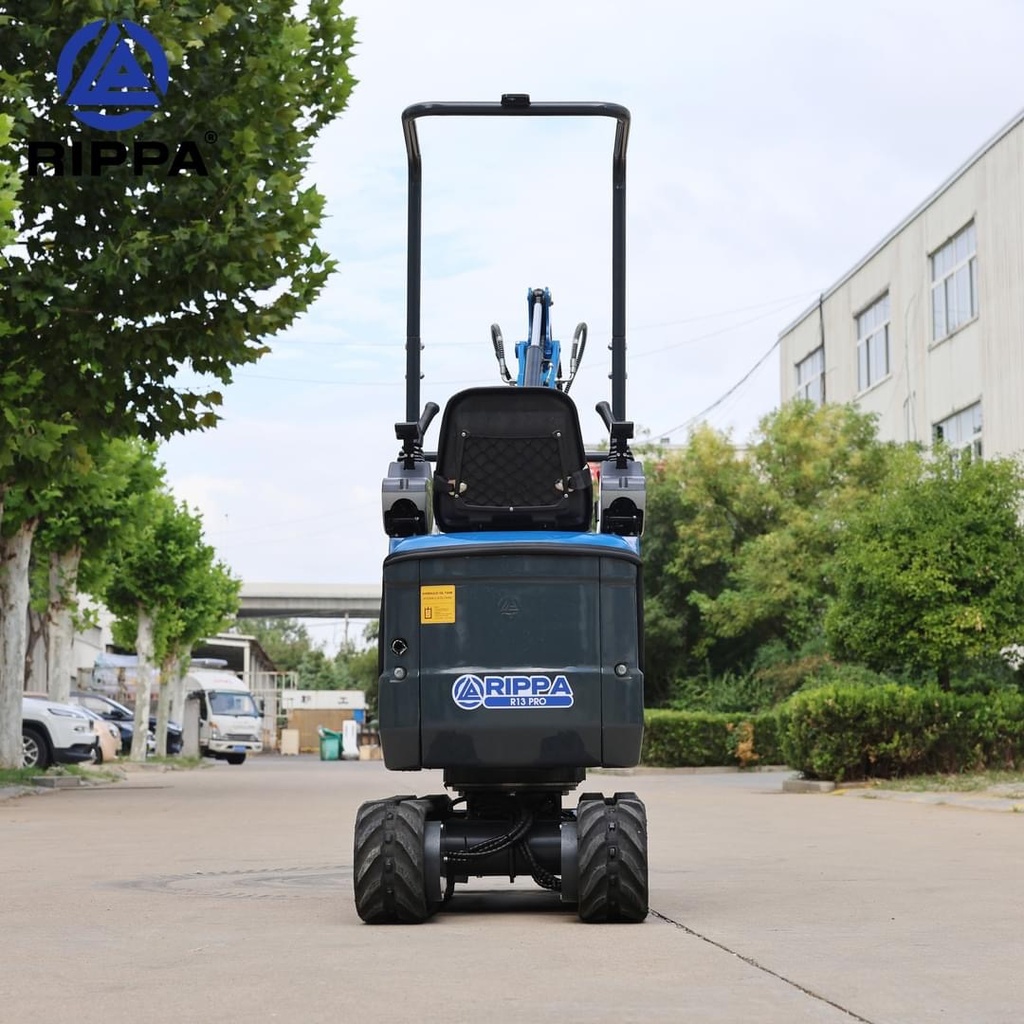

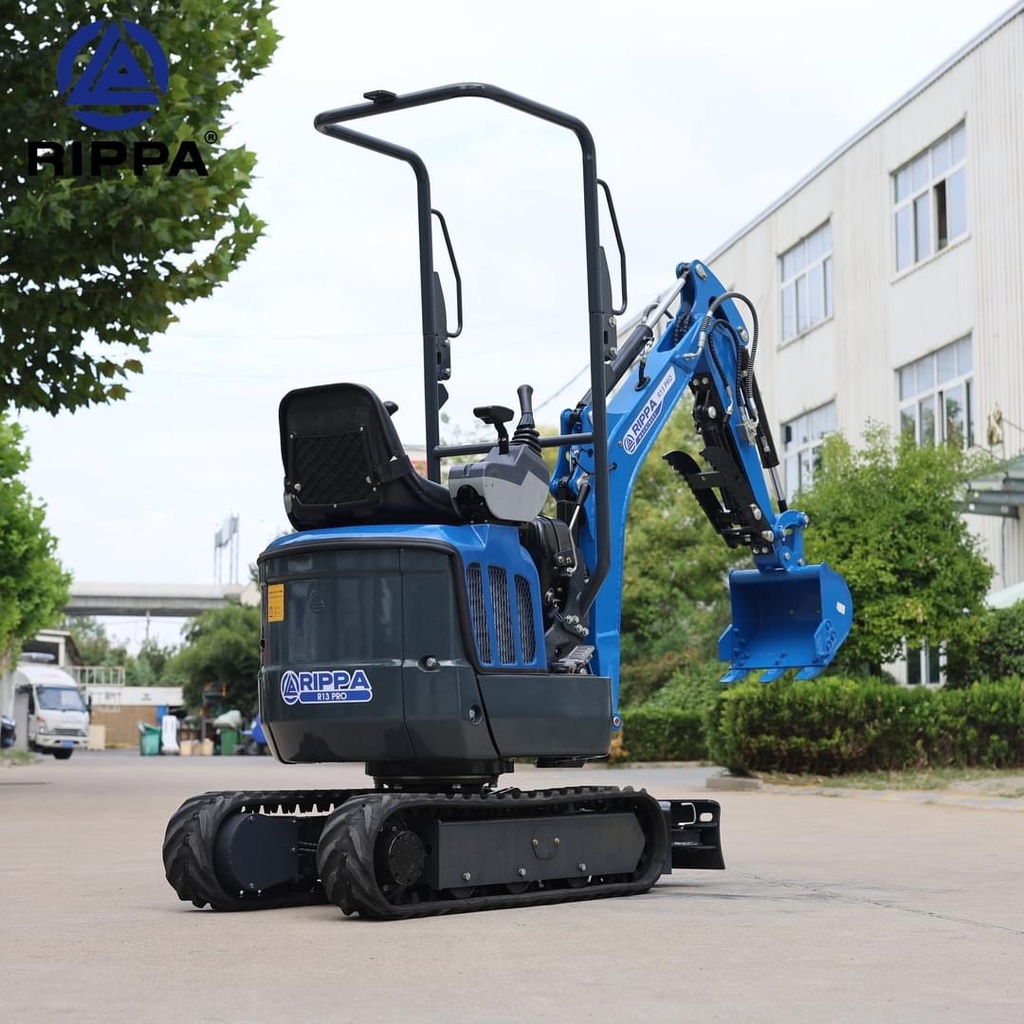

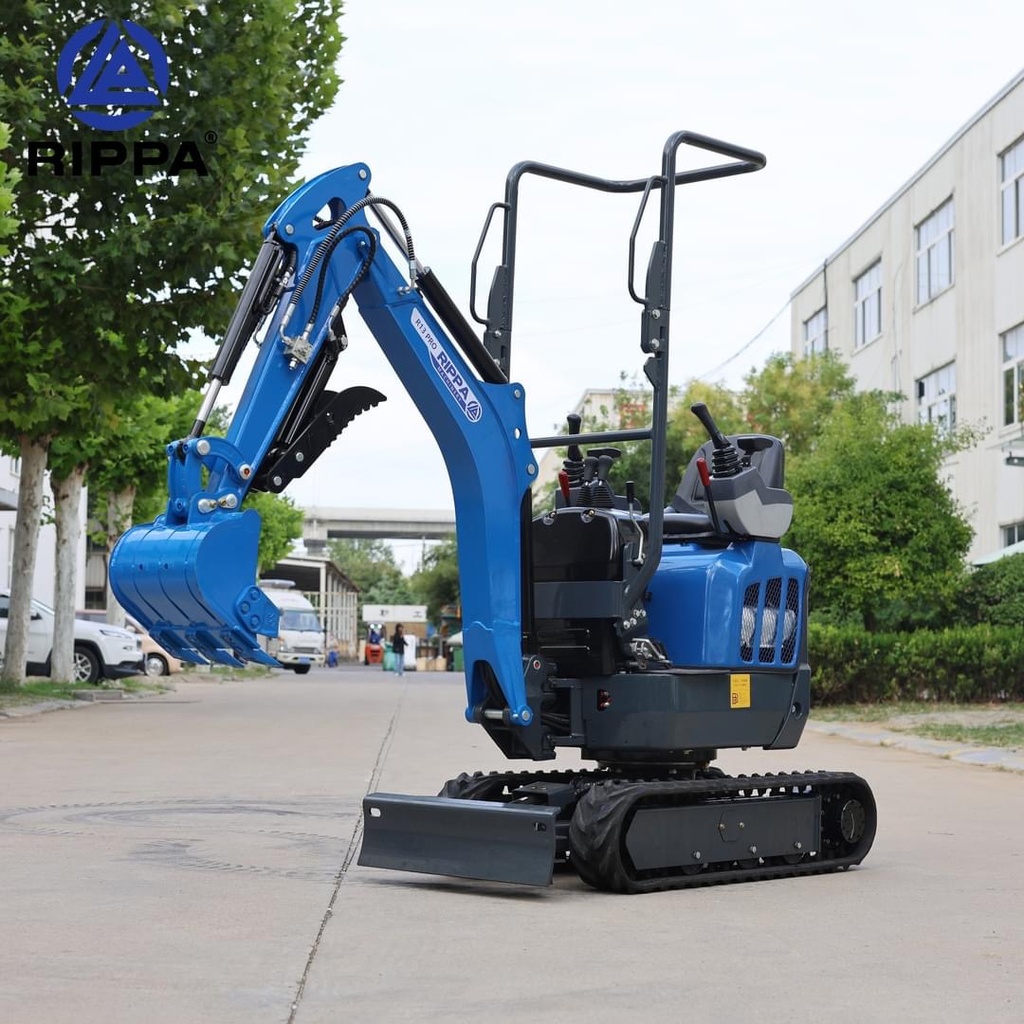

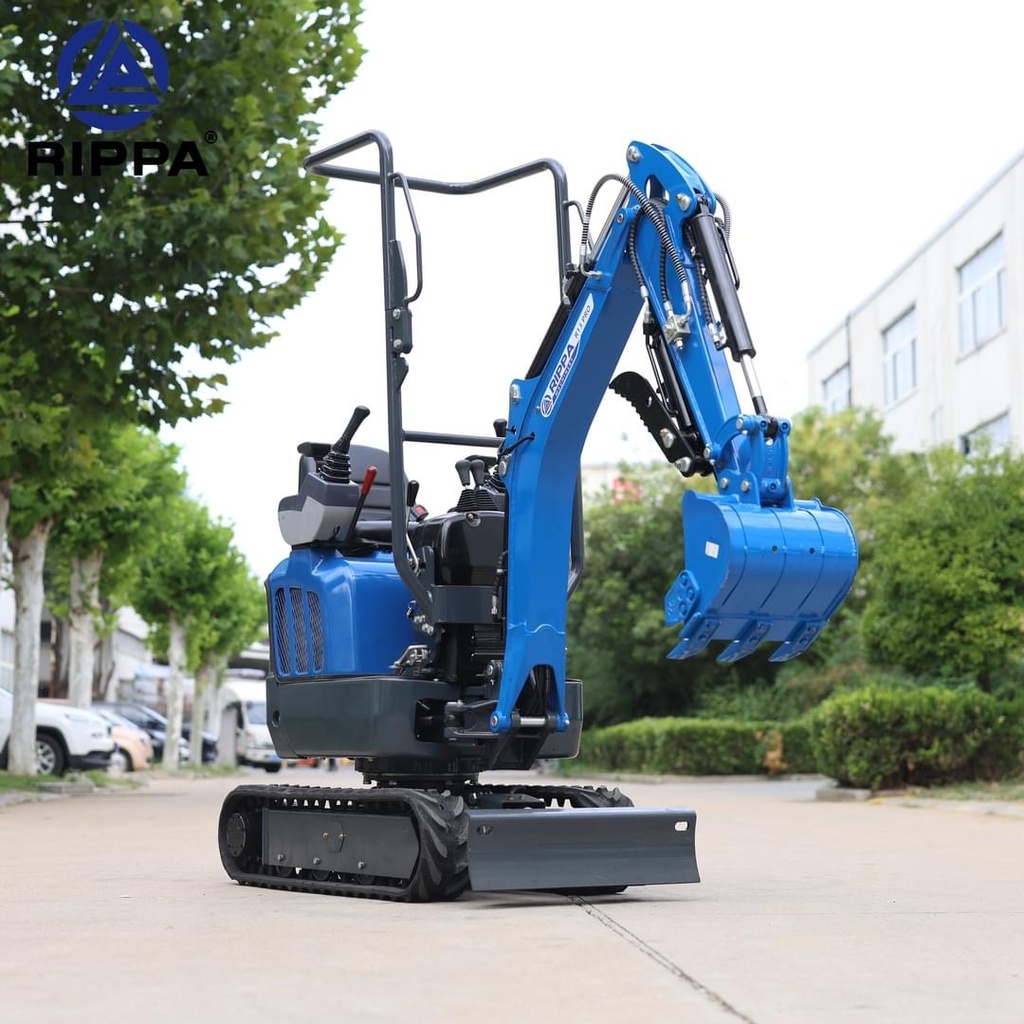

RIPPA R13-2 PRO

https://netchaos.odoo.com/web/image/product.template/194/image_1920?unique=0123e84
(0 review)

1.3 tons ultra-compact mini-excavator
Kubota D722 Diesel Engine
Extendable carriage included

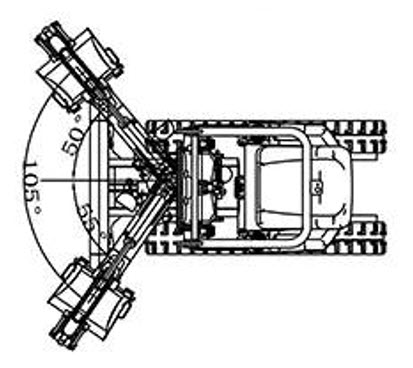

Swing Boom included

0.00 0.0 USD 0.00 + applicable sales taxes

0.00 $ + applicable sales taxes

Contact us for availability and pricing

  • Track type
  • Engine type
  • Engine Manufacturer
  • Engine Model
  • Maximum torque - (Nm (lb-ft) / rpm)
  • Maximum Rated output - (kW (HP) / rpm)
  • Operating weight (kg)
  • Final Drive type
  • Travel speed in high mode (km/h)
  • Travel speed in Low mode (km/h)
  • Max Bucket digging force kN (kgf/lbf)
  • Climbing ability (%)
  • Overall height (mm/in.)
  • Transportation width (mm/in.)
  • Transportation length (mm/in.)
  • Track width when retracted (mm/in.)
  • Track width when extended (mm/in.)
  • Locking hydraulic functions
  • Auxiliary Hydraulics on arm
  • Auxiliary output - Quick connect
  • Maximum digging depth (mm/in)
  • Maximum digging height (mm/in)
  • Maximum unloading height (mm/in)
  • Maximum reach at ground Level (mm/in)

This combination does not exist.

#r13-2-pro #rippaexcavator #rippa

Terms and Conditions
Delay for delivery
-1 to 2 business day if you pickup at our location
-7 to 10 business days  if you request shipping
-if you do a pre-order\reservation: up to 3 months might be required, while our stock are being replenished.

Top Speed

Two Speed Orbital final drive

The protected orbital travel motor is a cutting-edge component designed for precision and durability in demanding environments. Engineered to withstand harsh conditions, this motor features robust protective housing that safeguards its internal mechanisms from dust, moisture, and impact. Coupled with high torque power, it delivers exceptional performance, enabling smooth and efficient movement in applications requiring significant force. This combination of protection and power makes the protected orbital travel motor an ideal choice for industrial machinery, robotics, and other advanced systems where reliability and strength are paramount.

 Compact Design

The RIPPA R13 PRO redefines convenience and versatility with its compact format, making it an ideal choice for those who value flexibility in their equipment. Its sleek design allows for easy transport and storage, enabling users to seamlessly integrate it into any workspace or environment. Whether maneuvering under a structure or navigating tight, difficult-to-access spaces through a door or elevator, the RIPPA R13 PRO adapts effortlessly to your needs. This compact powerhouse not only saves space but also enhances productivity, allowing you to tackle tasks with ease and efficiency. Experience the freedom of movement and the ability to work wherever inspiration strikes, all thanks to the innovative design of the RIPPA R13 PRO.

KUBOTA Engine

Kubota diesel engine brings powerful performance and excellent working ability with its excellent design. It also has the advantages of low fuel consumption, low vibration and low noise. Kubota  provide a 2  years \ 2000 Hours warranty.

Specifications

Engine
Engine type Water-Cooled Diesel
Engine Manufacturer Kubota
Engine Model D722
Maximum torque - (Nm (lb-ft) / rpm) 45.8 (33.8) / 2600
Maximum Rated output - (kW (HP) / rpm) 14.9 (20.0) / 3600
Main Caracteristics
Track type Rubber
Operating weight (kg) 1295
Final Drive type 2-Speed Orbital Hydraulic Motor
Travel speed in high mode (km/h) 0-1.8
Travel speed in Low mode (km/h) 0-2.8
Locking hydraulic functions Yes
Auxiliary Hydraulics on arm Standard
Auxiliary output - Quick connect Standard

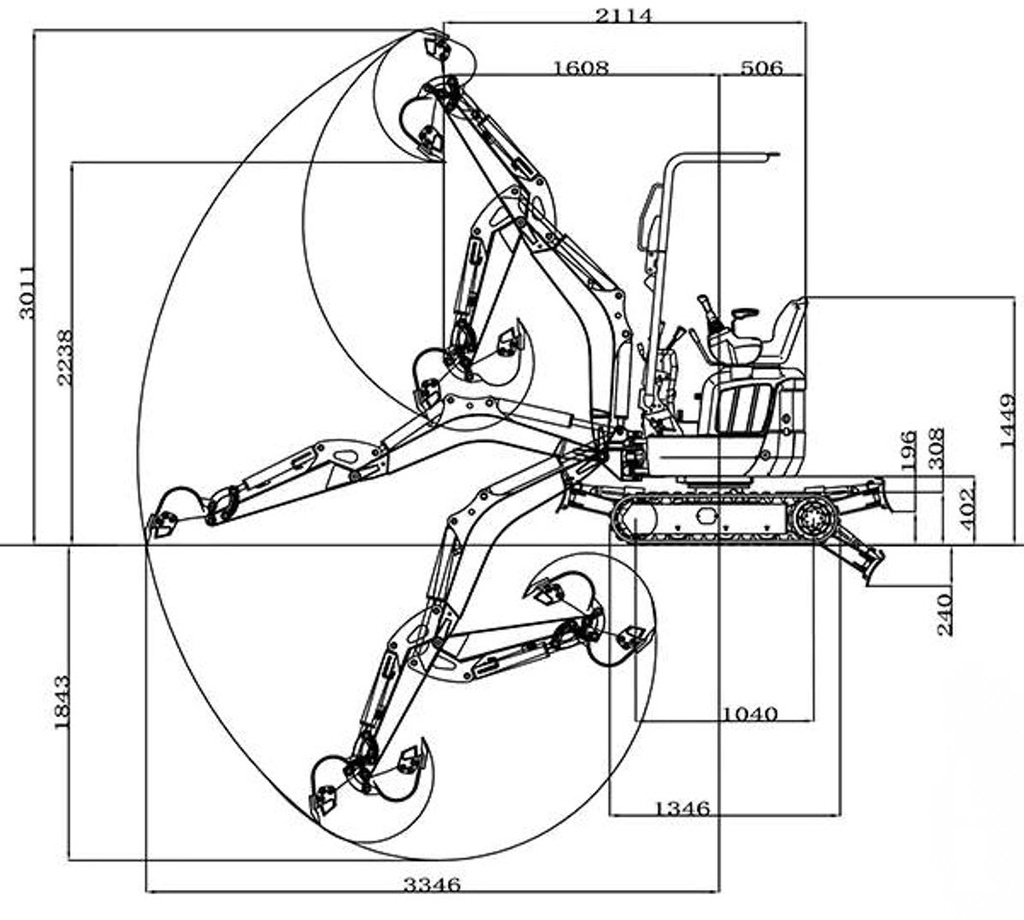

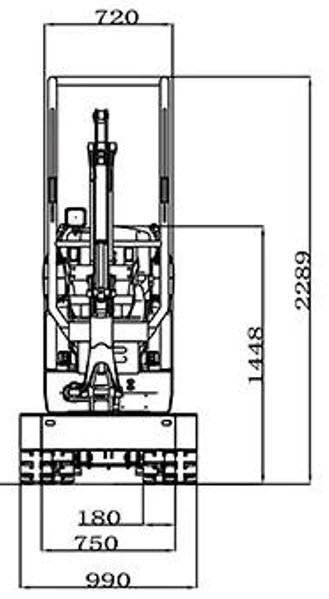

Dimensions
Overall height (mm/in.) 2289/90
Transportation width (mm/in.) 750/29.5
Transportation length (mm/in.) 2114/83
Track width when retracted (mm/in.) 750/29.5
Track width when extended (mm/in.) 990/39
Performance
Max Bucket digging force kN (kgf/lbf) 9.8 (999/2203)
Climbing ability (%) 30
Maximum digging depth (mm/in) 1843/72.5
Maximum digging height (mm/in) 3011/118.5
Maximum unloading height (mm/in) 2238/88
Maximum reach at ground Level (mm/in) 3346/132
